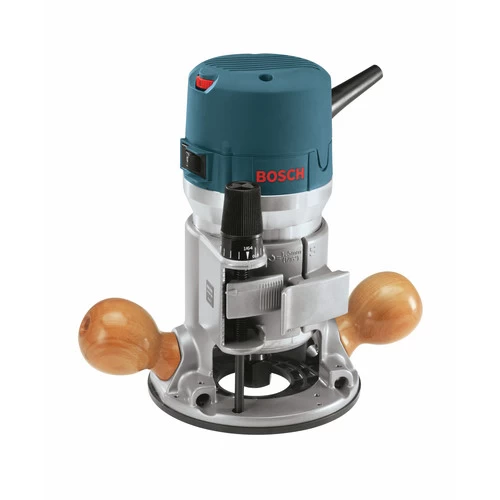

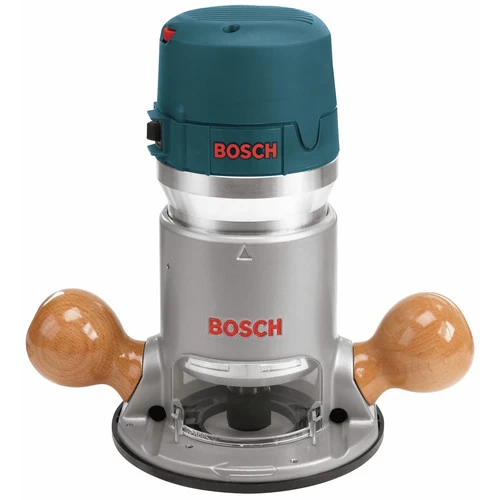

Bosch 1617EVS 2.25 HP Fixed-Base Electronic Router
Original price was: $199.00.$96.99Current price is: $96.99.
- Secure Payments, Secure Shopping
- Your happiness, our mission.
- Shop the Best Quality Online
- Quick responses, top-notch service.
Bosch 1617EVS 2.25 HP Fixed-Base Electronic Router
Details

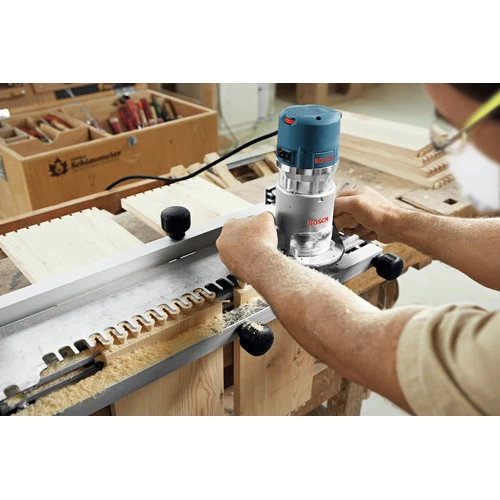

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router produces exacting cuts every time, thanks to a 12 Amp motor that combines ample power with adjustable speed settings. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. A precision centering system and 3-3/4 In. base opening enable swift maneuverability along the intended path. This tool is also one of the quietest routers in its class.
Powerful Variable-Speed Motor – The Bosch 1617EVS steers through even the toughest routing jobs with the powerful 2.25-horsepower, 12 Amp motor and its versatile speed range of 8,000 to 25,000 RPM. The variable-speed dial allows the operator to set the optimal speed for the task. And with built-in Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product.
Smooth Startup and Simple Operation – The Bosch 1617EVS delivers an integrated soft-start feature, so that the motor reduces torque upon startup for a smooth transition and easy handling. Its design adapts to let the user work with the switch and cord on the right or the left, for improved consistency and precision, as well as the confidence knowing that the motor won’t rotate during depth adjustment. The one-piece armature shaft maximizes accuracy and long-bit shank capacity in the router.
Features:
-
2.25 HP, 12 amp motor delivers 8000 – 25,000 RPM
-
Coarse and microfine bit depth adjustment system with the ability to reset the depth indicator – For fast, precise depth adjustment
-
Variable-speed dial – For matching speed to workpiece and task
-
Tool-free template guide adapter – For fast and easy template guide changes
-
Large 3-3/4 in. base opening plus 2 in. sub-base opening – Accepts large bits
-
Exclusive precision centering design centers bit precisely – Makes it easy to keep bit on intended cut line when using jigs, templates, dovetail fixtures and similar guidance devices
-
Right or left switch location – For user preference and consistency (motor does not rotate during depth adjustment)
-
Classic hardwood handles – For comfort and beauty
-
One-piece armature shaft – For accuracy and long bit shank capacity
-
Soft start – Reduces start-up torque
-
Constant Response circuitry – Maintains constant speed under load, provides overload protection
-
This item may ship in the original manufacturer’s packaging
What’s Included:
-
2.25 HP Fixed-Base Electronic Router – 1617EVS
-
Motor – 16176
-
1/4 in. Self-Releasing Collet Chuck – 2 610 906 283
-
1/2 in. Self-Releasing Collet Chuck – 2 610 906 284
-
16mm Shaft Wrench – 2 610 991 388
-
Collet Nut Wrench – 2 610 992 417
-
Tool-Free Templet Guide Adapter – 2 610 991 370
-
10 ft. Flexible Rubber Cord
-
Chip Shield – 2 610 991 389
-
Fixed Base – RA1161
-
T-Handle Hex Height Adjustment Wrench – 2610923193
-
Pack of 3 10-24 Screws for Table Mounting – 2610925813
Power Source
Corded
Amperage
12
UL Safety
Yes
Wifi compatibility
No
Collet Capacity
1/4 in / 1/2 in / 3/8 in / 8 mm
Speed Settings
Variable
Bluetooth Compatibility
No
Depth Adjustment Range
1-5/8 in
Motor Type
Brushed
Depth Adjustment System
Micro-Fine Depth Adjustment
Switch Type
Toggle
Speed Controls
Yes
Base Opening
3-3/4 in
Base Type
Fixed
No-Load Speed (RPM)
8000 – 25000
CSA Safety
Yes
Handle Style
Dual Knob
Case included
No
Case Included
No
Shank Size
0.25 in / 0.50 in / 0.38 in / 0.31 in
Horsepower
2.25
Voltage
120V
Base Dimensions
6 in x 6 in
Cord Length
10 ft
ETL Safety
No
No-Load Speeds (RPM)
8000 – 25000
Length
6 in.
Width
10 in.
Height
7.75 in.
Depth
12.26 in.
Weight
8.3 lbs.
Warranty Term
1 Year
