EMAX APP3Y1544TP 15 HP 3 Cylinder 2 Stage Reciprocating Air Compressor Pump
Original price was: $360.00.$95.99Current price is: $95.99.
- Secure Payments, Secure Shopping
- Your happiness, our mission.
- Shop the Best Quality Online
- Quick responses, top-notch service.

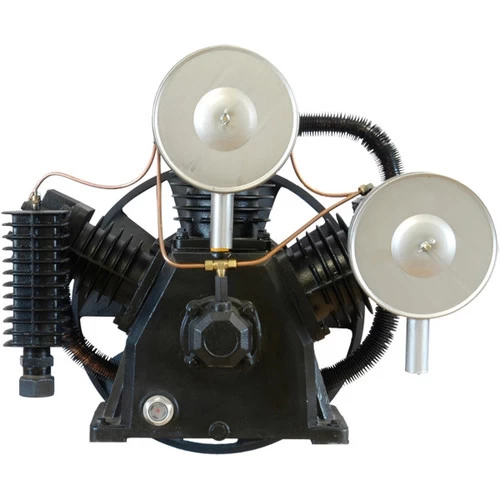

EMAX APP3Y1544TP 15 HP 3 Cylinder 2 Stage Reciprocating Air Compressor Pump
Details
This is our 15 HP, 3 Cylinder, 2 Stage, Air Compressor Pump. The 15 HP air compressor pump will produce 35 CFM if ran with a 10 HP motor at 600 RPM. This pump can go to 200 PSI, but what we tell all of our customers is even though the compressor will go to a higher pressure, you should run it at the lowest pressure possible to maintain the air pressure needed.
This will give you a higher CFM at a lower pressure and the compressor will run cooler with less compressor wear. This is true with any compressor on the market. Lower pressure combined with lower RPM will give you great results and a compressor that will last for many years. We have this style compressor, 3 Cylinder, in factories, body shops, and many tough applications that we sold over 20 Years ago. This pump runs counter clockwise rotation as you are looking at the compressor fan or flywheel. This pump runs at a super slow RPM of 650. Minimum RPM on this pump is 550. The belts are 3/4 in. from the center groove to center groove. The Flywheel size is 23 in.

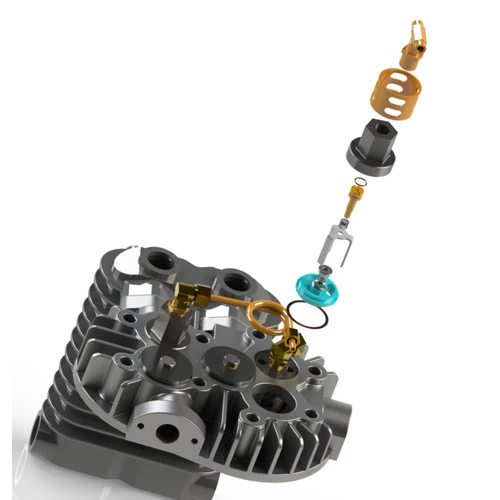

The reason this pump is so tough, is it is a 3-cylinder, or W design. With our unit, if you want to clean your valves, intake, or exhaust, you can take the valves out of the cylinder head by unbolting the valve retainer and just pull the valve right out of the head to inspect it. It is sealed with an aluminum washer under the valve seat, no head gasket to fool with when removing valves. Easy and Quick to take in and out.
Features:
-
Solid cast iron 2-stage 3 Cylinder W design piston series pump, oil lubricated design to extend pump life, rated at up to 50000 hours (based on B-10 bearing life rating)
-

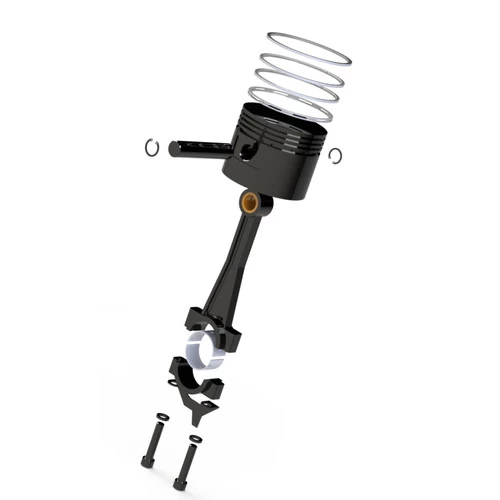

Ram-Tek – solid steel, heavy gauge rods, designed for maximum performance and durability
-
Cool-Tek – the coolest running compressors in the industry, air stream technology provides 35% lower operating temperature, reduces moisture build up and extends pump life
-
Flow-Tek – concentric disc valves, deliver maximum air flow and reliability with low replacement costs, easily accessible design provides easy maintenance and durability
-
Industrial grade ball bearing for maximum performance and extended pump life
-
Built-in head unloaders designed for continuous run applications
-
Bolt pattern: 6-7/8 in. x 12-3/8 in.
-
Flywheel included on pump
-

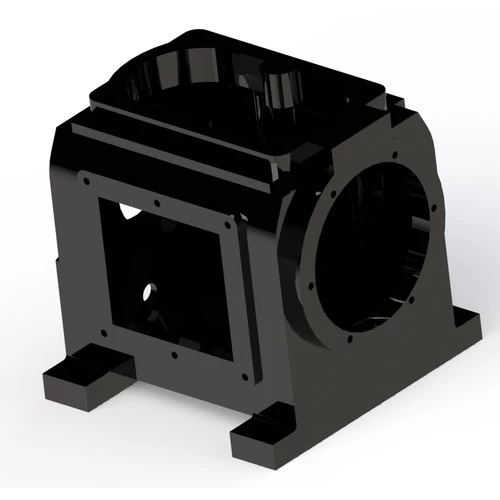

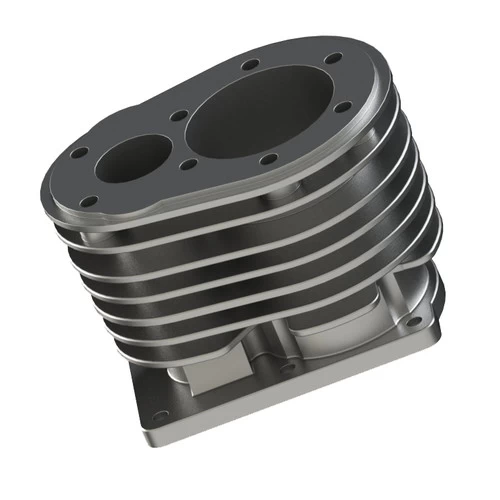

Solid cast-iron cylinders, crankcase, flywheel, crankshaft, and valve plates
-
Large Steel Automotive-Type Filters – not plastic
-
Large site glass for viewing your oil level
What’s Included:
-
15 HP 3 Cylinder 2 Stage Reciprocating Air Compressor Pump – APP3Y1544TP
Capacity
2.5 qt
Construction
Cast Iron
Stages
2-Stage
Type
Air Compressor Pump
Operating Pressure (PSI)
200
Color
Black
Horsepower
15
Quantity
1
Material
Cast Iron
Average Air Consumption (SCFM)
44
Length
29 in.
Width
16 in.
Height
22 in.
Weight
350 lbs.
