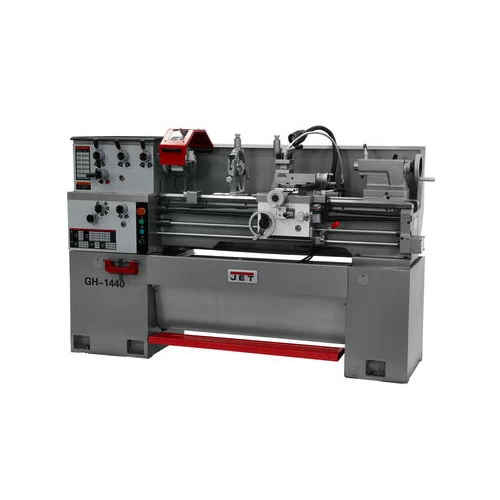

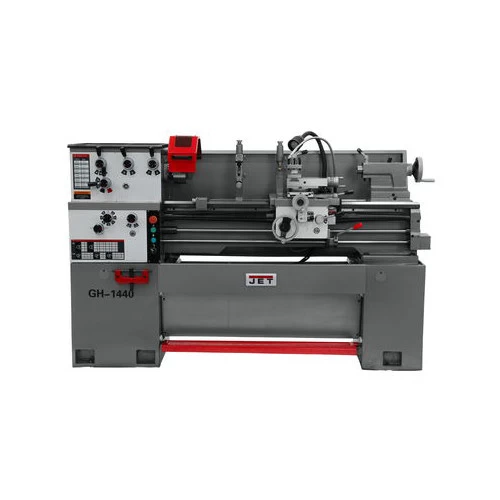

JET 323403 GH-1440-3 Lathe with 200S DRO
Details
The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Features:
-
V-way bed design is induction hardened and ground
-
Splined, not keyed, shafts are utilized
-
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
-
Independent leadscrew and feed rod
-
Adjustable gibs are incorporated in the carriage and slideways
-
Safety on/off switch
-
Emergency Stop within easy reach of the Operator
-
Electronic Chuck Key Docking Station
-
Chuck Guard
-
Foot Brake

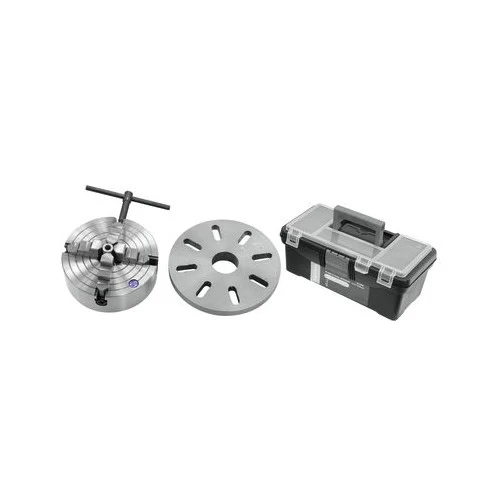

What’s Included:
-
GH-1440-3 with 200S DRO-JETN323403
Spindle Speed Settings
12
Power Source
Corded
Range of Inch Threads (TPI)
4 – 112
Spindle Bore Diameter
1-1/2 in
PreWired Voltage
230V
UL Safety
Yes
Bed Width
10-1/5 in
Swing Range (Cross Slide)
8-1/5 in
No. of Inch Threads
40
Bluetooth Compatibility
No
Bed Construction
Cast Iron
Cross Slide Travel
6-3/8 in
Motor Type
Brushed
Spindle Speed Range (RPM)
1800
Compound Slide Travel
3-1/2 in
Range of Metric Threads
0.45 – 7.5
Steady Rest Capacity
3-1/2 in
No. of Metric Threads
23
Range of Cross Feeds (IPR)
0.0004 – 0.0103
Swing Range (Gap)
20 in
CSA Safety
No
Distance Between Centers
40 in
Tool Size
5/8 x 5/8 in
Gap Length
9-3/8 in
Motor Phase
3
Range of Longitudinal Feed Rates (IPR)
0.0012 – 0.0294 in
Spindle Taper (Tailstock)
MT-3
Horsepower
3
Voltage
460V
Spindle Mount Taper
Yes
Carriage Travel
37-1/2 in
Spindle Travel (Tailstock)
4-3/4 in
Drive Type
Geared Head
Follow Rest Capcacity
2-5/8 in
No. of Longitudinal Feed Rates
40
No. of Cross Feed Rates
40
Swing Range (Bed)
14 in
ETL Safety
No
Spindle Mount
Yes
Length
74.8 in.
Width
28 in.
Height
46 in.
Weight
2336 lbs.
Warranty Term
2 Year
