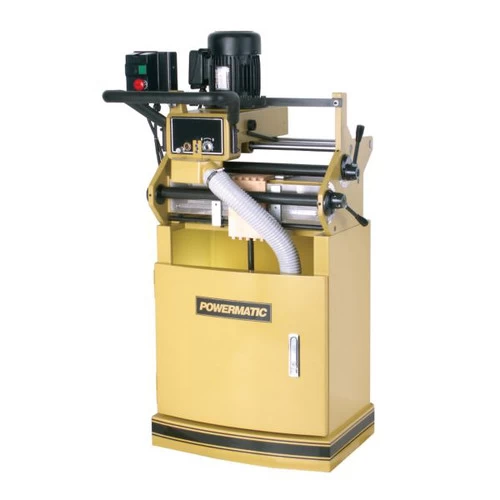

Powermatic DT45 115/230V 1-Phase 1-Horsepower Manual Clamping Dovetail Machine
Original price was: $336.00.$98.99Current price is: $98.99.
- Secure Payments, Secure Shopping
- Your happiness, our mission.
- Shop the Best Quality Online
- Quick responses, top-notch service.
Powermatic DT45 115/230V 1-Phase 1-Horsepower Manual Clamping Dovetail Machine
Details
The Powermatic DT45 Dovetail Machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an ergonomic clamp.
Features:
-
Four separate dovetail centerlines at 1 in, 1-1/2 in, 2 in, and 2-1/2 in.
-
1 HP, 1 Phase, 115/230V TEFC motor
-
Eccentric spindle collet for resharpened cutters
-
Cutter height of 3/16 in. to 3/4 in.
-
Manual eccentric clamping
-
Extra-large soft grip handle provides positive control and comfort
-
The precision carriage bearings are sealed on both ends to eliminate dust buildup
-
Visual stylus and template aids in guiding the carriage
-
Spring-loaded carriage makes for smooth, effortless dovetail cutting
-
Material stops provide convenient positioning of the workpiece
-
Cast-iron and steel construction for added stability and durability
What’s Included:
-
DT45 1 HP Manual Clamping Dovetail Machine – 1791304
-

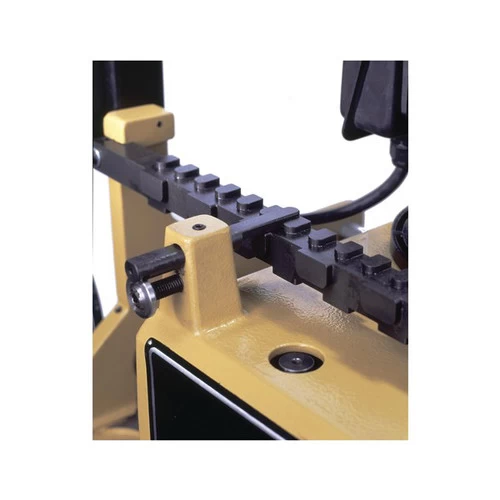

Four-Sided Template
-
Work Stops
-

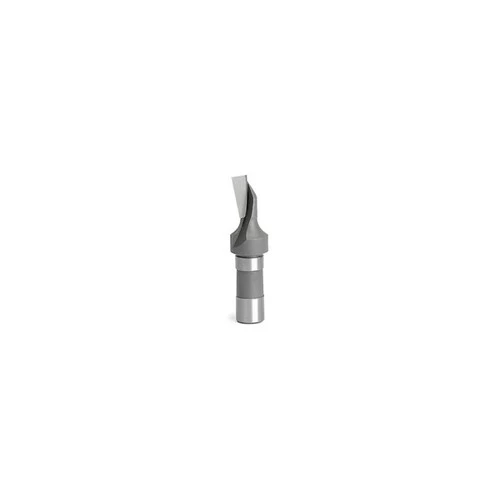

Dovetail Bit
-

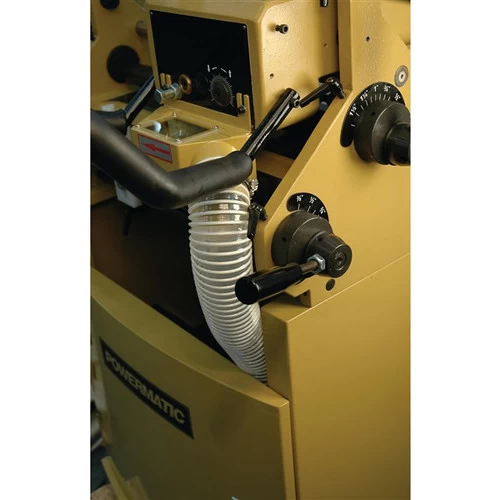

Dust Chute with Hose
-
Tool Kit
-
![cpo menu opner]()
Manual
Power Source
Corded
PreWired Voltage
115V
Amperage
16
UL Safety
No
Wifi compatibility
No
Front Thickness (Min.)
9/32 in
Dovetail Max (Max.)
3/4 in
Dovetail Spacing (Center to Center)
1 in / 1-1/2 in / 2 in / 2-1/2 in
Bluetooth Compatibility
No
Motor Type
Brushed
Spindle Speed (RPM)
18500
Dovetail Height (Min.)
3/16 in
Side Thickness (Max.)
1-3/16 in
No. of Spindles
1
Workpiece Size (Min.)
7-7/8 in x 2-3/8 in
CSA Safety
No
Front Thickness (Max.)
1-3/4 in
Dust Port Size
2-1/2 in / 4 in
Motor Phase
1
Table Height
35 in
Side Thickness (Min.)
9/32 in
Horsepower
1
Voltage
115V/230V
ETL Safety
No
Workpiece Size (Max.)
31 x 11 in
Length
33 in.
Width
33 in.
Height
61 in.
Weight
380 lbs.
Warranty Term
1 Year
