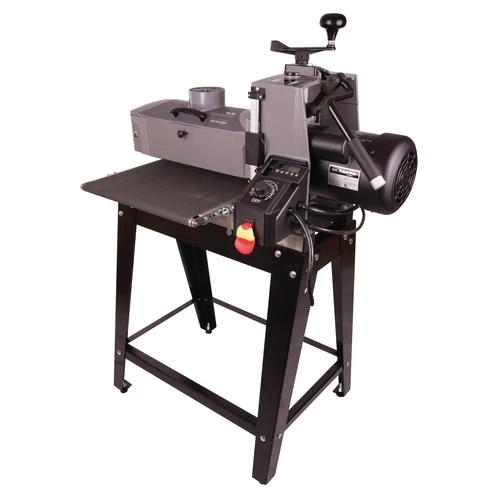

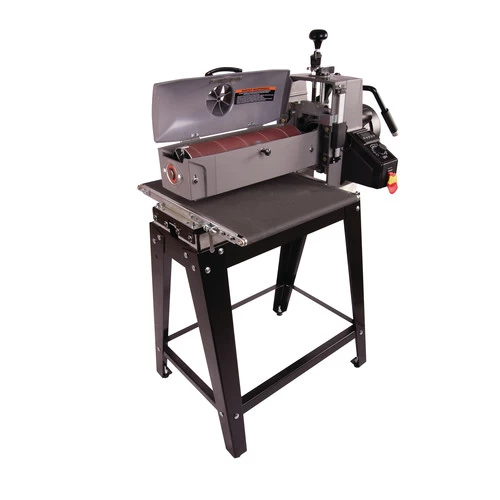

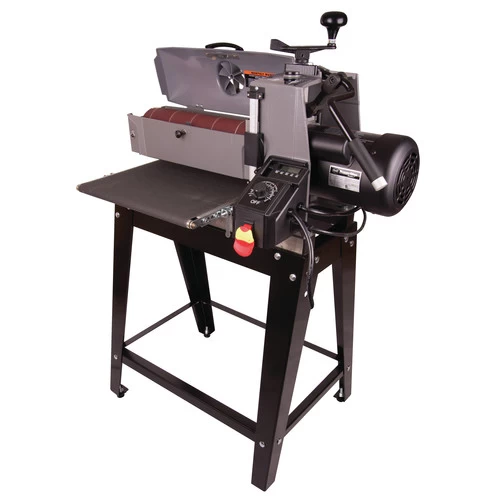

SuperMax SUPMX-71632 16-32 Drum Sander With Open Stand
Original price was: $388.00.$97.99Current price is: $97.99.
- Secure Payments, Secure Shopping
- Your happiness, our mission.
- Shop the Best Quality Online
- Quick responses, top-notch service.
SuperMax SUPMX-71632 16-32 Drum Sander with Open Stand
Details
The 16-32 Drum Sander (#71632) is the newest member of SuperMax Tools drum sander family which was designed with new features to improve productivity.
Features:
-

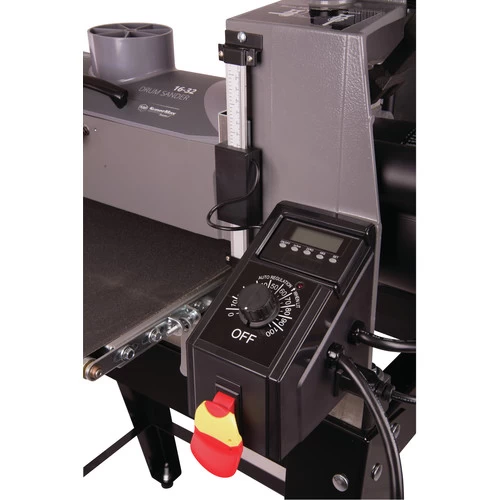

Built-in DRO (digital read out): maintain material thicknesses to increase accuracy and quality.
-

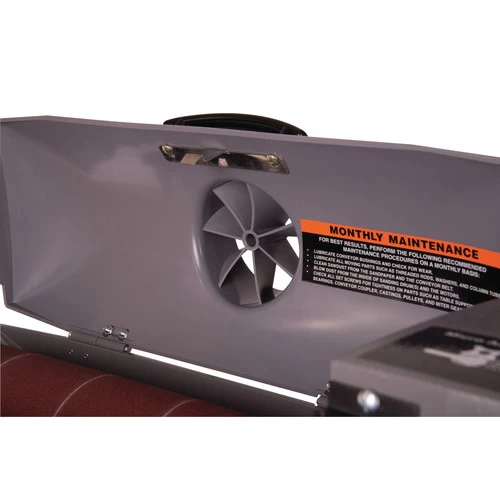

Turbo Vented dust port: increases airflow to your dust collector by 15%.
-
Rear placement of the Gear Motor: improve conveyor belt tracking
-
These new features complement the same great features SuperMax Tools have provided for years.
-

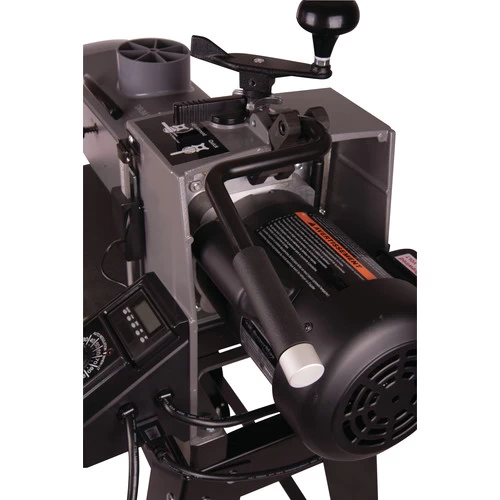

Patented Fast Lever: allows quick adjustments for wide and narrow stock.
-
INTELLISAND Technology: prevents gouging, damaging, or burning material.
-
Exceptional Laguna SuperMax Features. We’ve addressed issue common with other drum sanders by engineering features that are exclusive to our 16-32 machines. No other drum sander on the market has these features! Patented “Quick Lever Adjustment” which allows height adjustments from 0 – 3 in. with one pull of a lever versus 48 revolutions of a hand wheel greatly reducing set-up time and increases productivity.
-
Includes build-in Digital Read Out which helps maintain consistent thicknesses to increase accuracy and quality. A newly designed Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%. Simple alignment feature – just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
-
Indexed alignment setting – the fast lever is an indexed alignment setting for narrow and wide stock. When sanding stock wider than 16 in., the index lever will properly adjust the conveyor for flawless wide sanding. Drum will never go “out of alignment” – the drum carriage is bolted to the base, preventing any movement or alignment issues.
What’s Included:
-
16-32 Drum Sander with Open Stand – SUPMX-71632
Power Source
Corded
Board Width (Min.)
16 in
PreWired Voltage
110V
Amperage
15
UL Safety
Yes
Drum Speed (RPM)
1740
Board Thickness (Min.)
1/32 in
Wifi compatibility
No
Conveyor Speed (FPM)
0 – 10
Bearing Diameter
OD – 52 mm
Bluetooth Compatibility
No
Motor Type
Brushed
Board Length (Min.)
2-1/4 in
Drum Length
16 in
Board Thickness (Max.)
3 in
CSA Safety
Yes
Dust Port Size
4 in
Conveyor Motor
43 in-lbs Torque/Direct Drive/DC
Motor Phase
1
Horsepower
1.5
Voltage
110V
Drum Diameter
5 in
ETL Safety
Yes
Length
22 in.
Width
34 in.
Height
48 in.
Weight
158 lbs.
Warranty Term
2 Year
